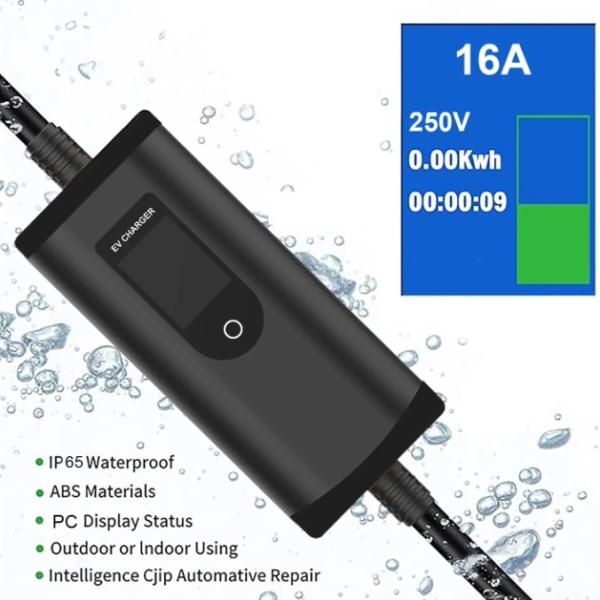

Electric Car 32A 7Kw TYPE 2 Ev Charging Station Portable Ev Charger With Screen Adjustable

Name: Electric Car 32A 7Kw TYPE 2 Ev Charging Station Portable Ev Charger With Screen Adjustable
Brand: HONGJU
Price: 1 USD

China Electric Car 32A 7Kw TYPE 2 Ev Charging Station Portable Ev Charger With Screen Adjustable wholesale

Brand Name : HONGJU

Model Number : HJ-EV-PE-03

Certification : TUV-Mark/CB/ CE/RoHS/UKCA

Place of Origin : CHINA

MOQ : 500

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 100000PCS Per Month

Delivery Time : 30-40 days

Packaging Details : Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep

Output Power : 7KW/11KW/22KW

ICCB size : L220XW100XH60(mm)

LCD display : 2.4'' LCD screen

Input power : 200-440V

Charging cable : 4.5M Type 2 (TPU Jacket) or customization

Protection rank : IP65

Contact Now

Electric Car 32A 7Kw TYPE 2 Ev Charging Station Portable Ev Charger With Screen Adjustable

Type 2 Charger Model & Spec
Model No.	Rated Current	Power	Rated Voltage	Certificate
EV-PE-03-3	16A/1Phase	3.5kW	200-250V	CE, ROHS
EV-PE-03-7	32A/1Phase	7kW	200-250V	CE, ROHS
EV-PE-03-11	16A/3Phase	11kW	380-440V	CE, ROHS
EV-PE-03-22	32A/3Phase	22kW	380-440V	CE, ROHS

Certificates & QC	CE(ICR lab), UKCA, RoHS,TUV mark, ISO
ICCB Protection rank	IP65
Cable Protection rank	IP55
LCD display	2.4" LCD Screen
LED indicator	Red/ Blue / Green
RCD	30ma AC++6ma DC
Input power	250V max
Charging cable	4.5M Type 2 (TPU Jacket) or customization
ICCB size	L220xW100xH60 (mm)
Start mode	plug & play
Operating temperature	-30℃ to 50℃
Warranty	2 years (both cable and ICCB)
lead time	30-35 days after deposit payment
Q'ty basis	based on 200pcs+ each, if lower than 200pcs, price with $2/PCS up, MOQ 20pcs each type
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection. Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing
Package	Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)
Features	New upgraded model; Simple and exquiste appearance; IP65, Weather proof; Leakage current protection; Current Switch, Time delay Charging status and working error simply displayed by LED indicators and LCD screen Optional function of current choice button to switch current from 16A-32A

Electric Car 32A 7Kw TYPE 2 Ev Charging Station Portable Ev Charger With Screen Adjustable

Package

Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton

Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
