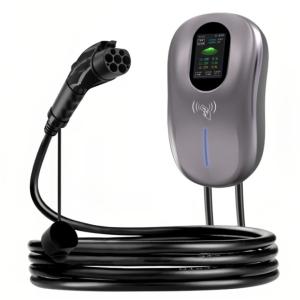

J1772 Wall EV Chargers 11kW Wallbox Electric Car Charger Type 1
| Product Name | TYPE 1 Wallbox EV charger |
| Model | EV-WA-08-7 | EV-WA-08-9 | EV-WA-08-11 |
| Adjustable Current | 32A | 40A | 48A |
| Power | 7.6KW | 9.6KW | 11.5KW |
| Cable specification | 3*10AWG+1*18AWG TPE OD16.5 | 2*9AWG+1*10AWG+1*18AWG TPE OD 16.5 | 2.*8AWG+1*10AWG+1*18AWG TPE OD 20.5 |
| Votage | |
| Operating Temperature | |
| Standard | UL62, UL2251, SAE-J1772, UL2594 |
| User Interface | LED indicator+LCD display(4.3 inch) |
| Case material | Thermoplastic (flame retardant grade UL94-0) |
| Charging Inerface | Type 1 Plug +5M cable or custom cable length & color |
| Product Dimension | Type 1 plug: 220*65*64 mm, Control Box: 220*130*385mm |
| Degree of Protection | Charging plug: IP65 Control box: IP65 |
| Product Performance | Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature protection (85°C). Lightning protection. Short circuit protection. flame retardant. |
- Electric Vehicle Charger: The maximum output of the charger is 48 amp, which can achieve a faster charging speed. Insert the NEMA 14-50 outlet (maximum 40A) or can be hardwired (maximum 48A) for fast level 2 charging.
- Level 2 CHARGER is widely used: the maximum output of the EV charger is 48 amp (can be hardwired). You can also choose a lower amp setting at 16, 24, 32, or 40 amps(NEMA 14-50 outlet) to achieve extensive charging charging Control and customization.(Note: Electric Vehic Charger does not have adjustable buttons, 16, 24, 32, or 40 ampels are determined by your own home current)
- Electric Car Charger Wi-Fi Connection: Electric Vehicle Charging Stations built-in WiFi, which can be remotely controlled by remote APP. You can remotely control and monitor charging. When your car is full, your phone will be notified. Electric Car Charger's Swipe Card design can better operate and use it.
- With cable hook: Level 2 Electric Vehicle EV Charger has a 25 -foot -length cable, which is flexible and convenient to use. Our EV charger is equipped with a cable hook, which can well organize the cable and store, so that your cable well is organized.
- Safe and reliable: Electric Vehicle (EV) CHARGER has the wind and rain level of IP55.The EV charger have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, intelligent temperature control protection, etc. The working environment is (-30 ° C ~ 50 ° C), providing maximum safety and durability.
EV Home Charger Is Safe And Secure
25Ft Cable Length for Various Scenes
With a 25-foot cable, its longer cables provide flexibility in the event that drivers need to park further from the EV charger.
Compatible with J1772 EVs
Compatible with all-electric and plug-in hybrid vehicles that meet J1772 standards.
Waterproof Rating
Electric Vehicle (EV) CHARGER has the wind and rain level of IP55.
How to make Order
Please send us an email to specify the item, quantity, color or other specification to place an order.
1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.
2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.
1. What's the rated of EV Charging Cable you have? Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
